Get Superior Noise Reduction
PLYWALL® Noise Barriers offer an effective, durable, and budget-friendly noise control solution to high noise levels from the road to the job site, and everywhere in between.
The sound solution
Plywall® engineered wood noise barrier
Established in 1981, PLYWALL® is the largest treated wood soundwall in the world — a warm, fence-like barrier with noise reduction comparable to heavier, more expensive concrete and masonry.
About Plywall®
Stronger, lighter, dimensionally stable
PLYWALL® is built with Kiln Drying After Treatment (KDAT), producing a soundwall that is stronger, lighter and dimensionally stable. CCA and MCA preservatives with UV resistance give decades of protection against decay and termites.
It adapts to any height, soil, climate and terrain. Because of its natural wood, fence-like look, PLYWALL® is less imposing to communities and neighborhoods — and unlike concrete and steel, it saves on material, installation and repair costs.
Modifications for odd span widths and terrain contours are easily made in the field. Our customers get a complete turn-key solution: engineering, fabrication and a comprehensive material package, all installed by our own highly trained employees.
Design detail
A proven post-and-panel system

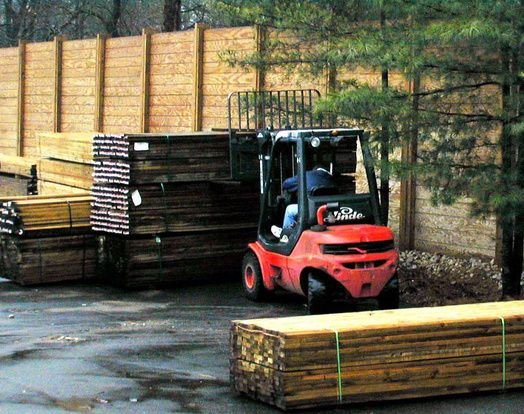

PLYWALL® panels are prefabricated pressure-treated wood panels. Panel caps are standard on every panel.
- Panels in 8, 12 and 16 ft widths with unlimited heights; specialty widths and heights available
- Posts embedded in the ground, backfilled with gravel or concrete — or steel beams in lieu of treated posts
- Engineered to your specified wind loading (IBC)
- Tested per ASTM E-90; performance comparable to concrete and masonry
- Reflective barrier performance
- Factory-applied clear sealant or solid color stain; textured face improves adhesion for special finishes
Benefits
An effective, low-cost alternative to other barrier types
No routine maintenance
Not required, but suggested. Choose the maintenance package to extend your warranty.
Engineered for wind
Designed to meet the required IBC wind loading for your site.
Unlimited heights
Certain wind-load limitations apply. Stepped profiles follow grade.
STC 31 or STC 35
Minimum 20 dB transmission loss per ASTM E-90. Both options at no additional cost.
Friendlier appearance
Warm natural wood that reads as a fence, not a wall.
Renewable resource
Wood from a renewable resource, with lower material costs and easier installation.
Where it works
Built for every market
PLYWALL® barriers are used across the U.S. to mitigate noise, protect property and improve appearances. Each wall system is custom built to your specifications.

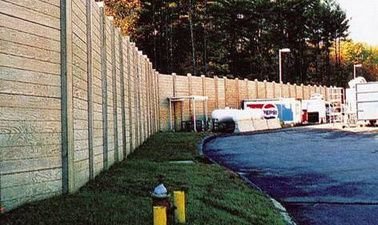

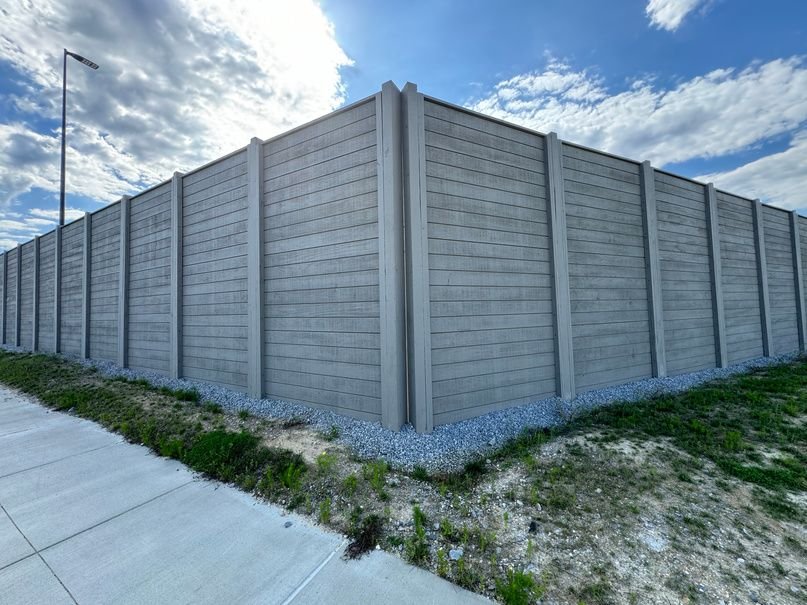

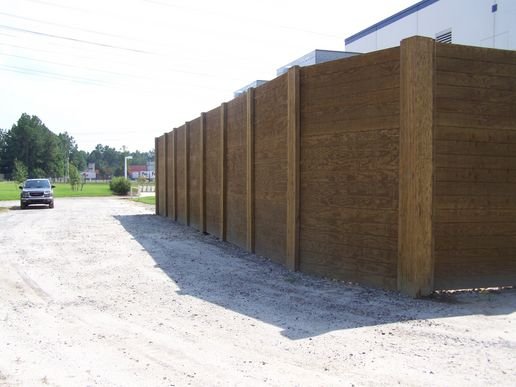

Industrial & commercial
- Manufacturing plants
- Generators
- Trucking facilities

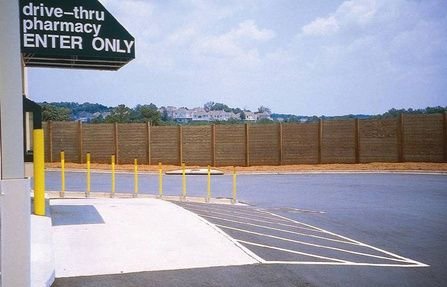

- Big box retail & strip malls
- Hospitals
- Recycling centers

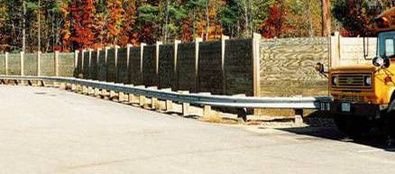

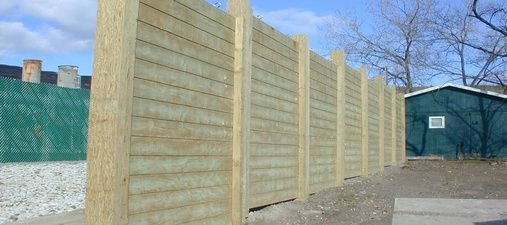

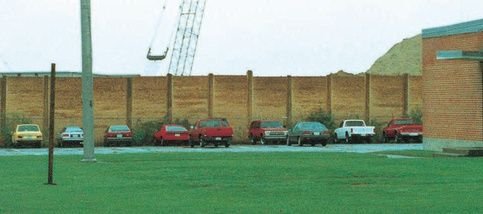

Residential development
- Lower material costs
- Friendlier fence appearance
- Ease of installation
- No routine maintenance

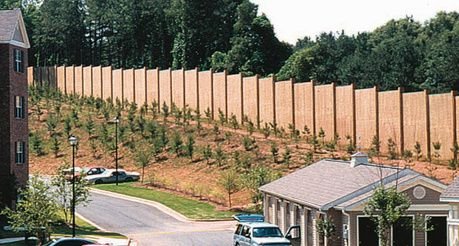

Municipal & government
- Schools
- Waste water
- Parking lots
- Parks & zoos
- Transportation & utility garages

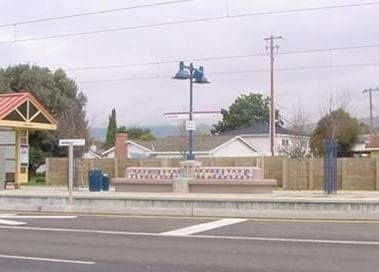

Transportation

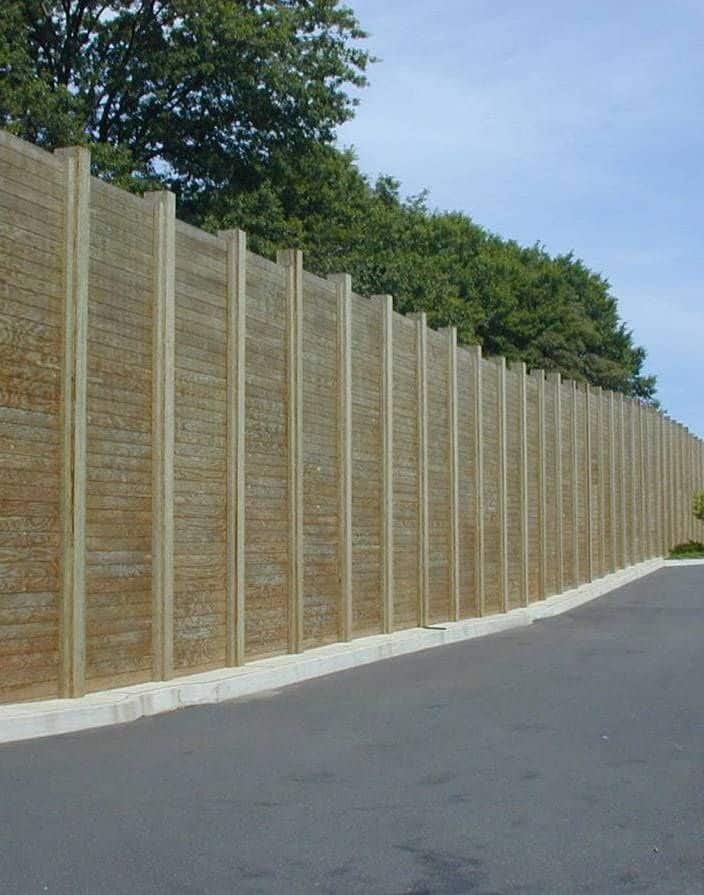

- Turnpikes & highways

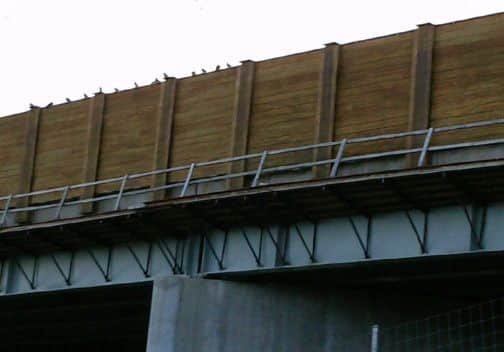

- Bridges & abutments
- Railroads & high-speed lines
- Rest & service areas
- Maintenance yards
Color deck
48 solid-color stains — or factory clear

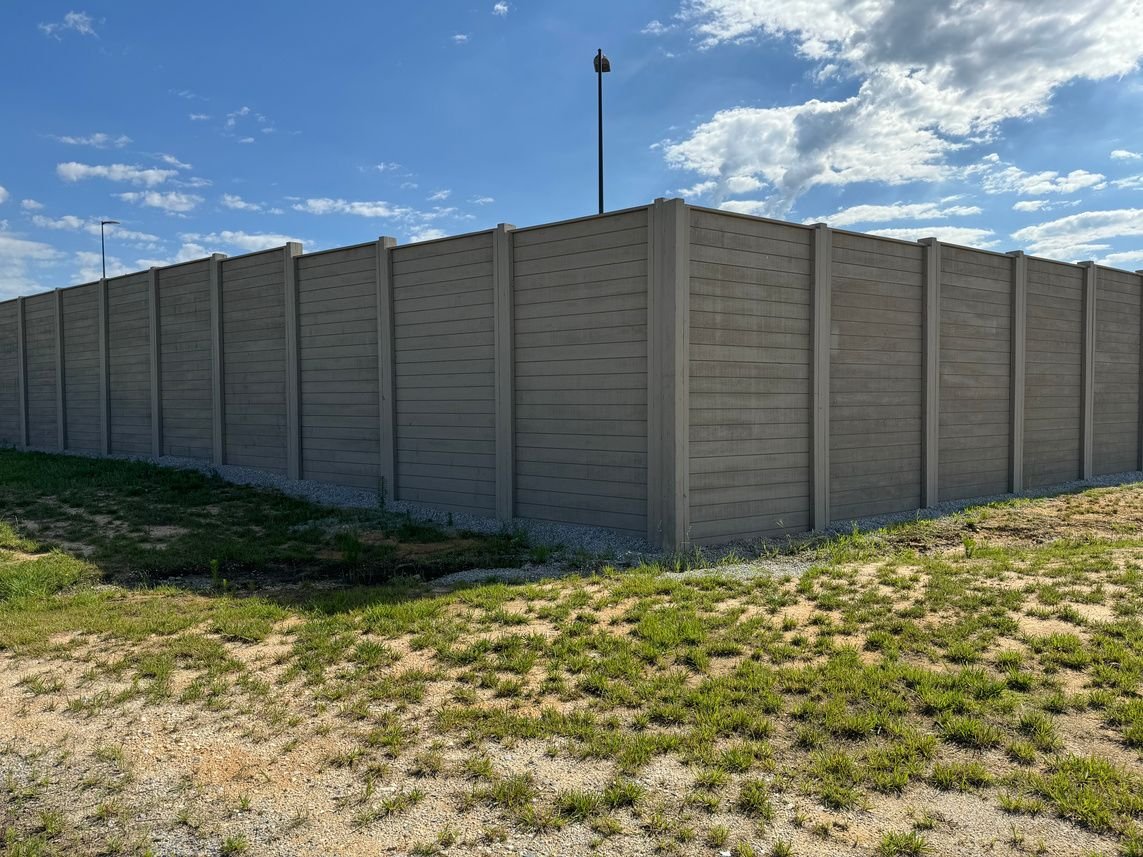

PLYWALL® comes standard with a factory-applied clear sealant or your choice of solid-color stain.
On-screen colors are approximate. Ask for a physical sample before the finish goes on the drawings.
Warranty
15–30 year limited warranty
PLYWALL® carries a 15 to 30 year limited warranty against fungal decay and termite damage, depending on the options selected. A maintenance package extends your warranty.
Expected service life: 25+ years.
No maintenance package? You still get a 15-year limited warranty with no maintenance requirement.
In place

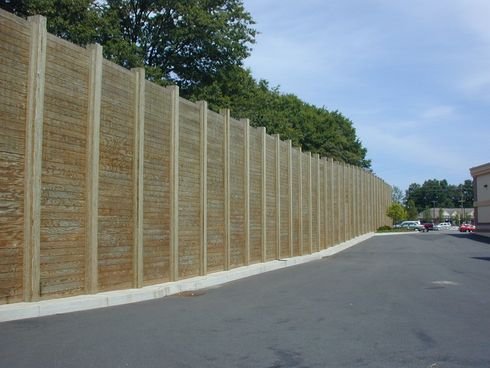

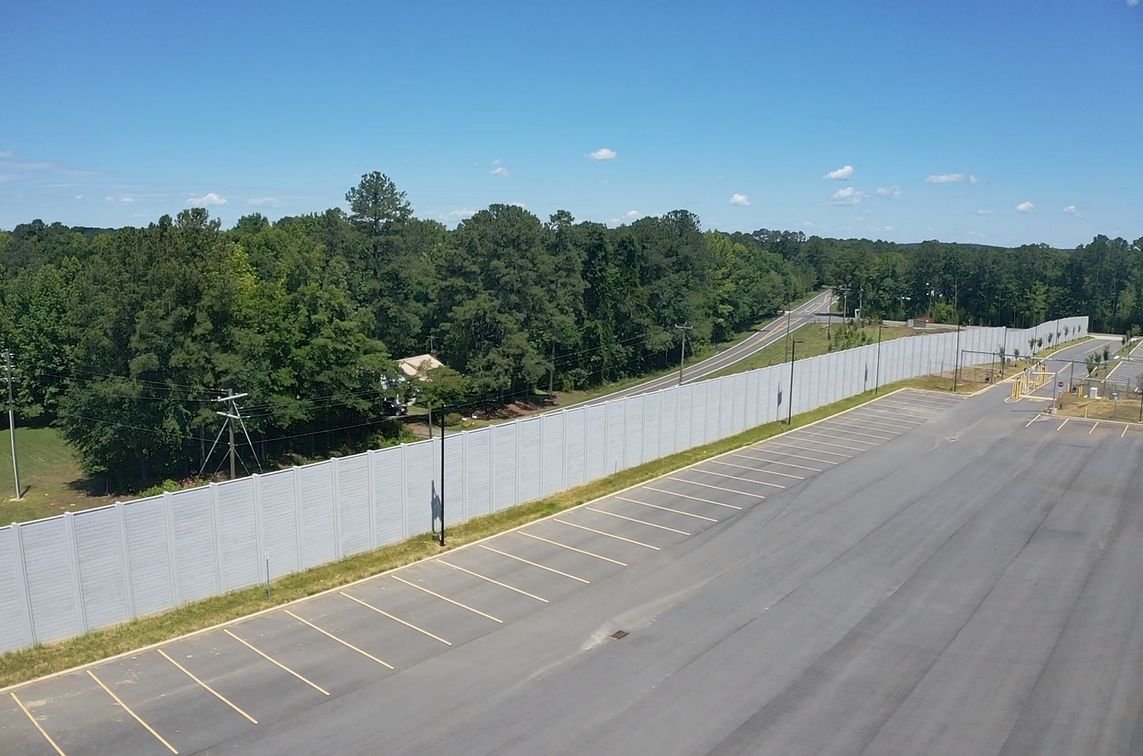

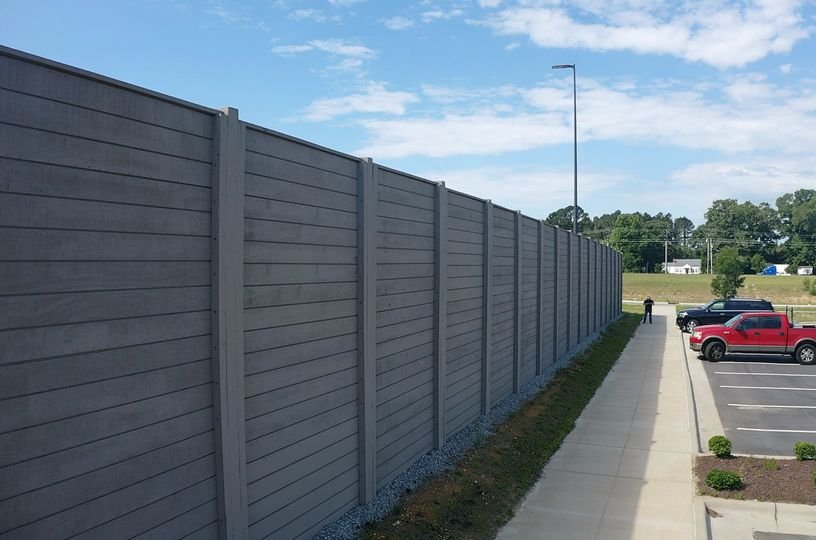

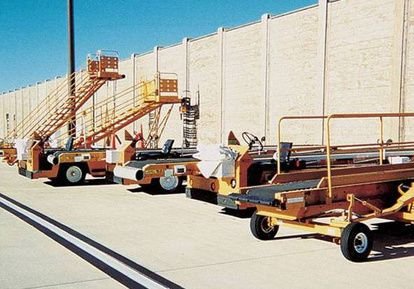

Project gallery
More projects on the PLYWALL® gallery.
One name, three systems
Compare the PLYWALL® family
We are the only soundwall company that offers a pre-engineered wood, PVC and precast noise barrier system. We engineer, fabricate and install all three with our own crews.
| Plywall® | PlywallPVC® | PlywallPRECAST® | |
|---|---|---|---|
| Material | Pressure-treated, kiln-dried-after-treatment wood (KDAT), CCA / MCA preservative | Color-stable PVC (vinyl) panels | Precast concrete |
| Sound rating | STC 31 or STC 35 — same price. Min. 20 dB transmission loss (ASTM E-90) | STC 32 or STC 38 (ASTM E90/E413) | STC 48 (ASTM E90/E413) |
| Barrier performance | Reflective | Reflective or absorptive | Reflective or absorptive |
| Panel widths | 8, 12, 16 ft | 8, 12, 16 ft | 8, 12, 16 ft |
| Panel heights | Unlimited* | Unlimited* | Unlimited* |
| Finish | Factory clear sealant or solid-color stain — 48-color deck | 6 solid colors + 4 woodgrains, color is in the vinyl | Factory clear sealant or solid color — 48-color deck |
| Maintenance | No routine maintenance required (suggested) | No staining or painting, ever | No routine maintenance required |
| Warranty | 15–30 yr limited, by options selected | 15 years | 20 years |
| Service life | 25+ years | 30+ years | 40+ years |
| Delivery | Engineered, fabricated and installed by our own crews | Engineered, fabricated and installed by our own crews | Engineered, fabricated and installed by our own crews |
*Certain wind-load limitations apply. Barriers are engineered to your specified wind loading (typically 20–60 PSF, per IBC).
