Get Superior Noise Reduction
PLYWALL® Noise Barriers offer an effective, durable, and budget-friendly noise control solution to high noise levels from the road to the job site, and everywhere in between.
A PLYWALL® system
PlywallPVC® vinyl noise barrier
The same post-and-panel architecture as original Plywall® — now in color-stable PVC that will not rot, stain or need painting. Engineered, fabricated and installed by our own crews.
The product
Built like Plywall. Finished in PVC.
Commercial · industrial · highway · residential.
- Color-stable vinyl. A satin PVC finish holds a consistent color — no peeling stain, no gray weathering, no annual painting.
- Will not rot or splinter. PVC panels shrug off moisture, insects and freeze-thaw. Built for year-round exposure.

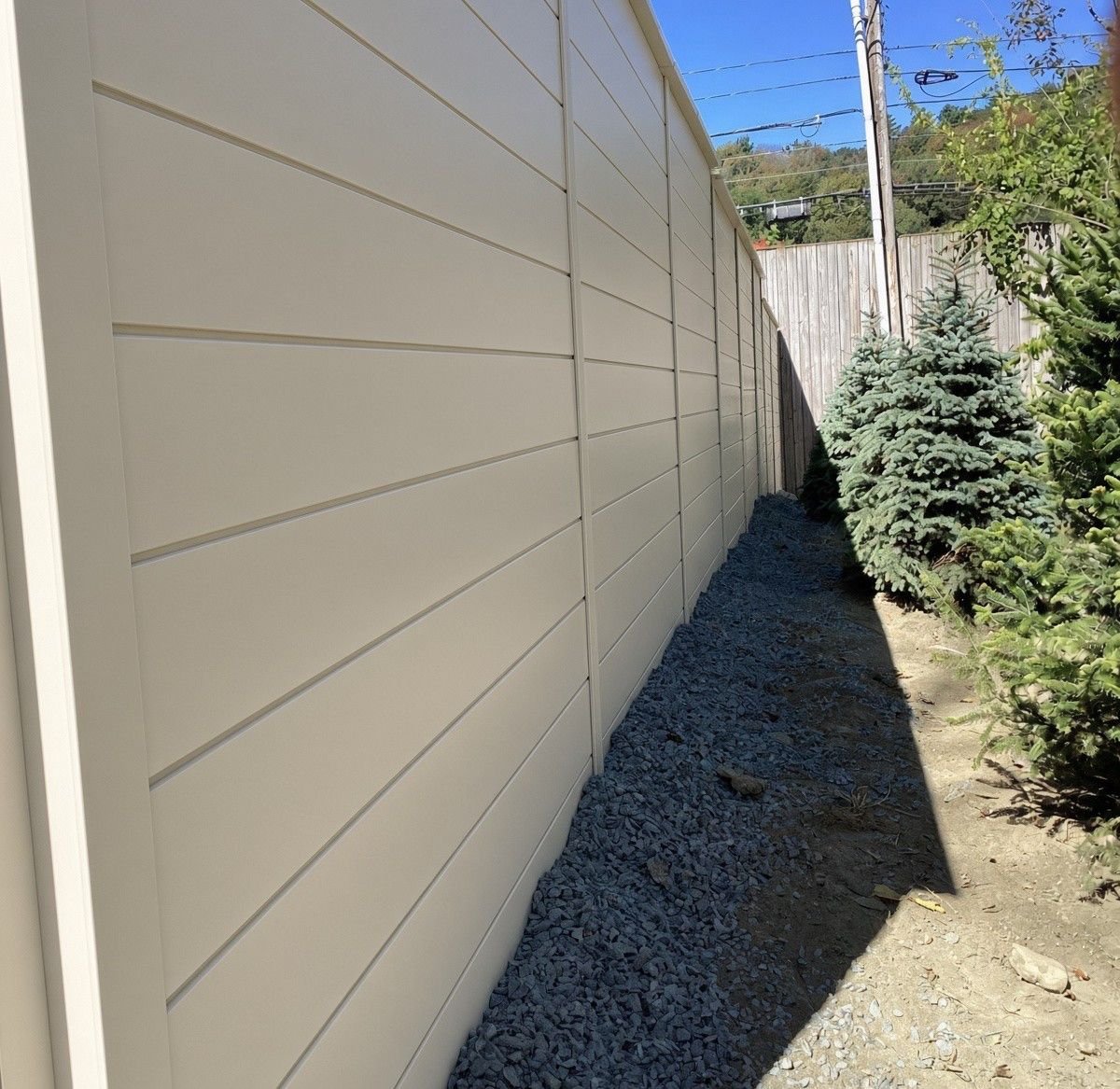

- Same system language. Horizontal slat panels, vertical posts, cap rail — the Plywall look engineers already specify.
- Reflective or absorptive. Choose the barrier performance the site calls for, at STC 32 or STC 38 (ASTM E90/E413).

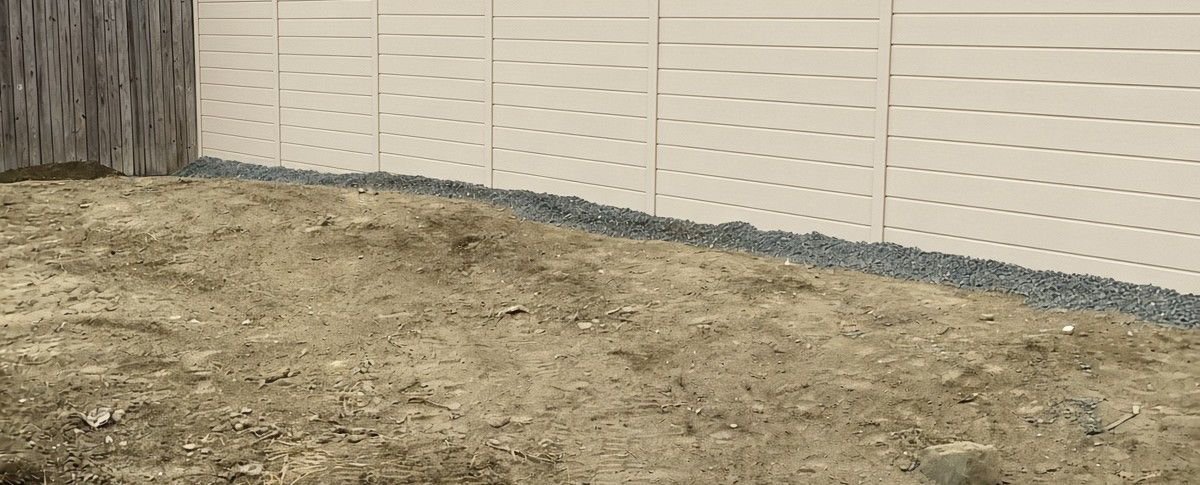

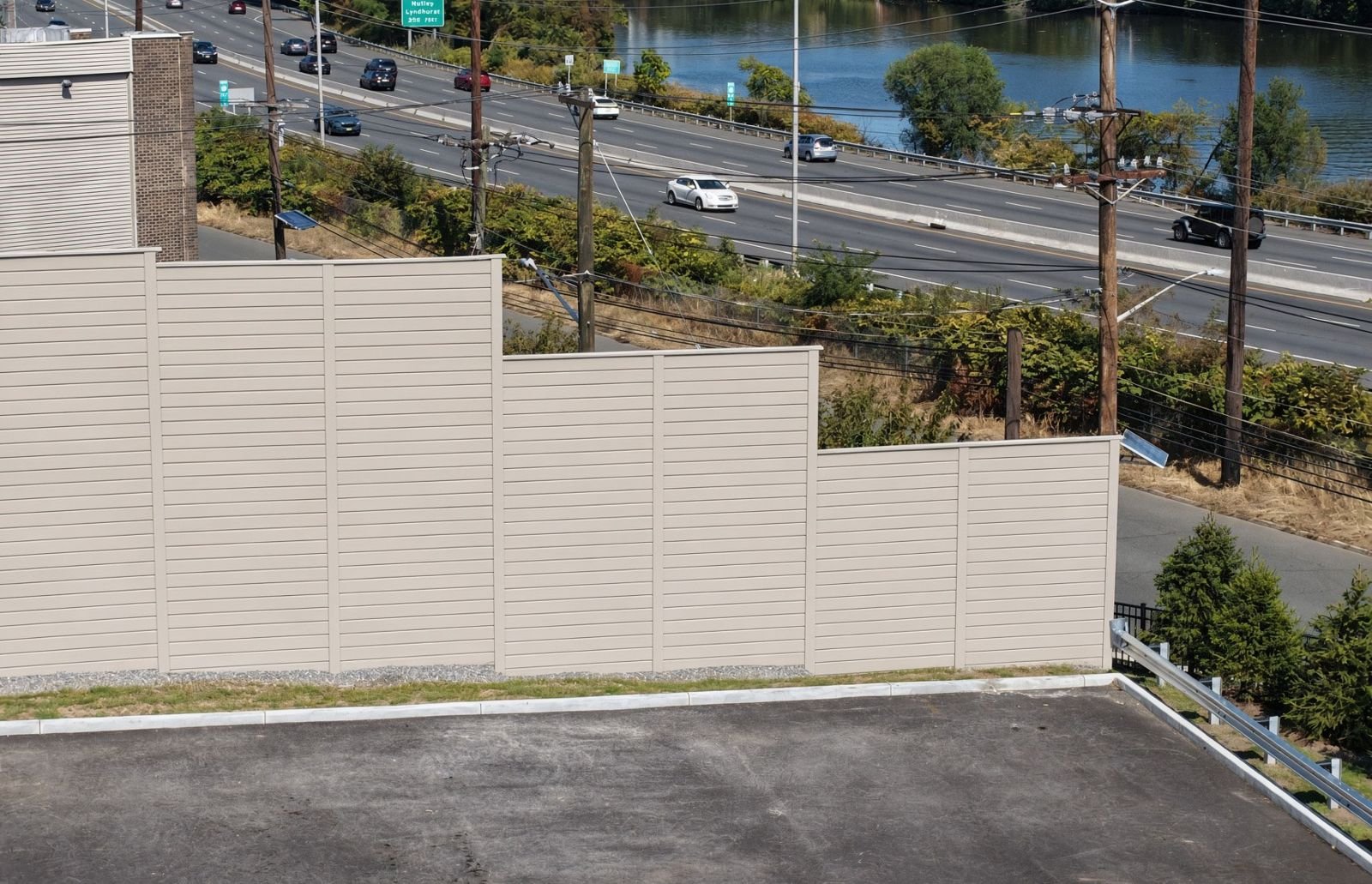

- Unlimited, stepped heights. Panels follow grade and property lines. Terrain changes are routine.
Why owners and specifiers choose PVC
Less upkeep, one contractor
Warranty
15-year warranty and a 30+ year service life. No staining cycle — the color is in the vinyl.
Install
Prefabricated panels and field-adaptable spans mean less disruption on live sites.
Full scope
Engineered, fabricated and installed by our own crews — union, non-union or prevailing wage.
Walls
Soundwall and retaining wall can be one in-house scope. No sleeve contractor.
Finishes
Standard colors · woodgrain options
Solid colors
Woodgrain
Standard
Six solid colors: White, Grey, Desert, Beige, Brown and Stone.
Woodgrain
Four grain faces: Dark Maroon, Lava, Blackwood and White Wood.
Custom
Other colors available on request. Confirm availability at bid.
Sample
Ask for a physical chip before locking the finish on the drawings.
On-screen colors are approximate.
In place

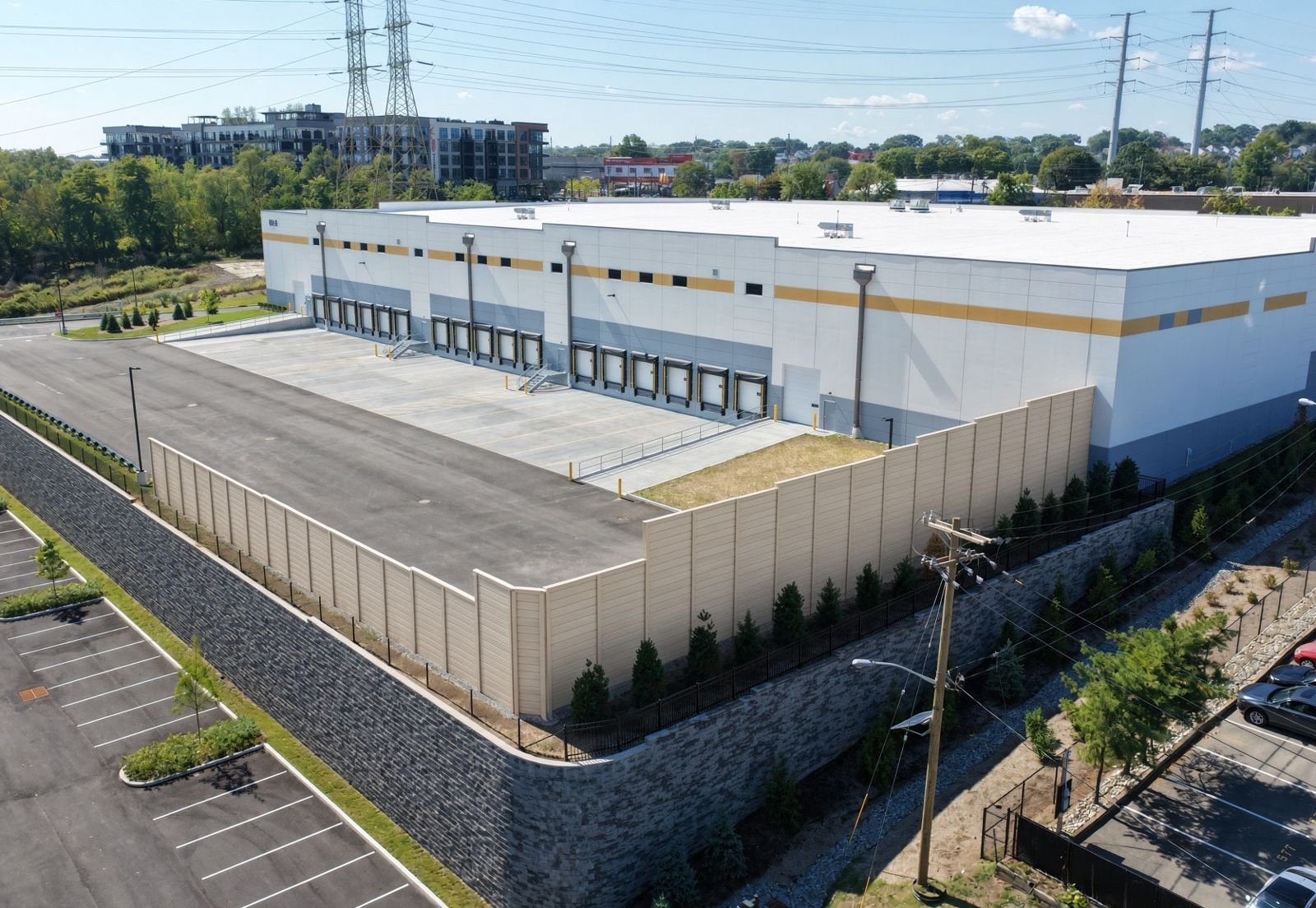

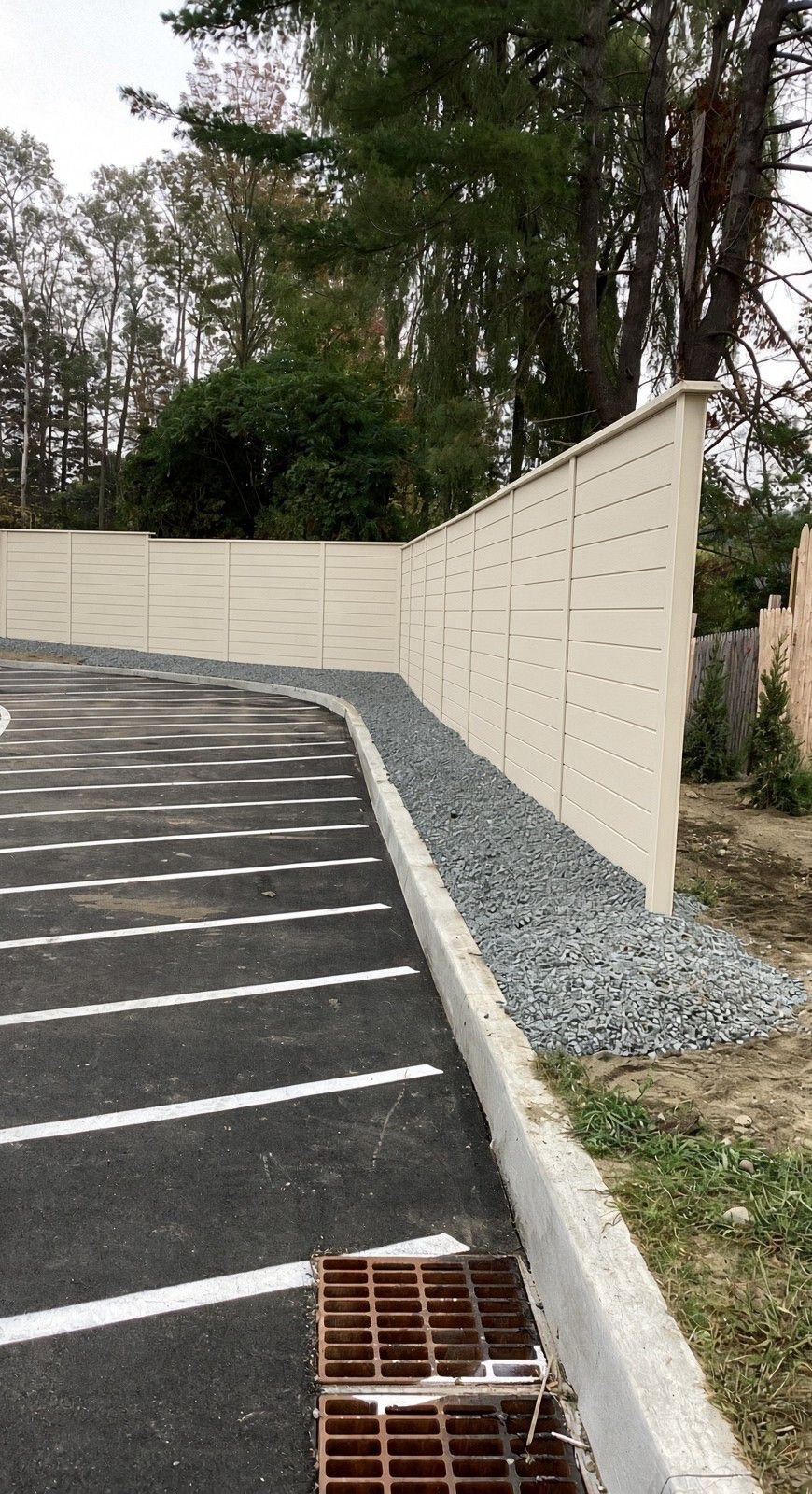

Highway, industrial, commercial — every season

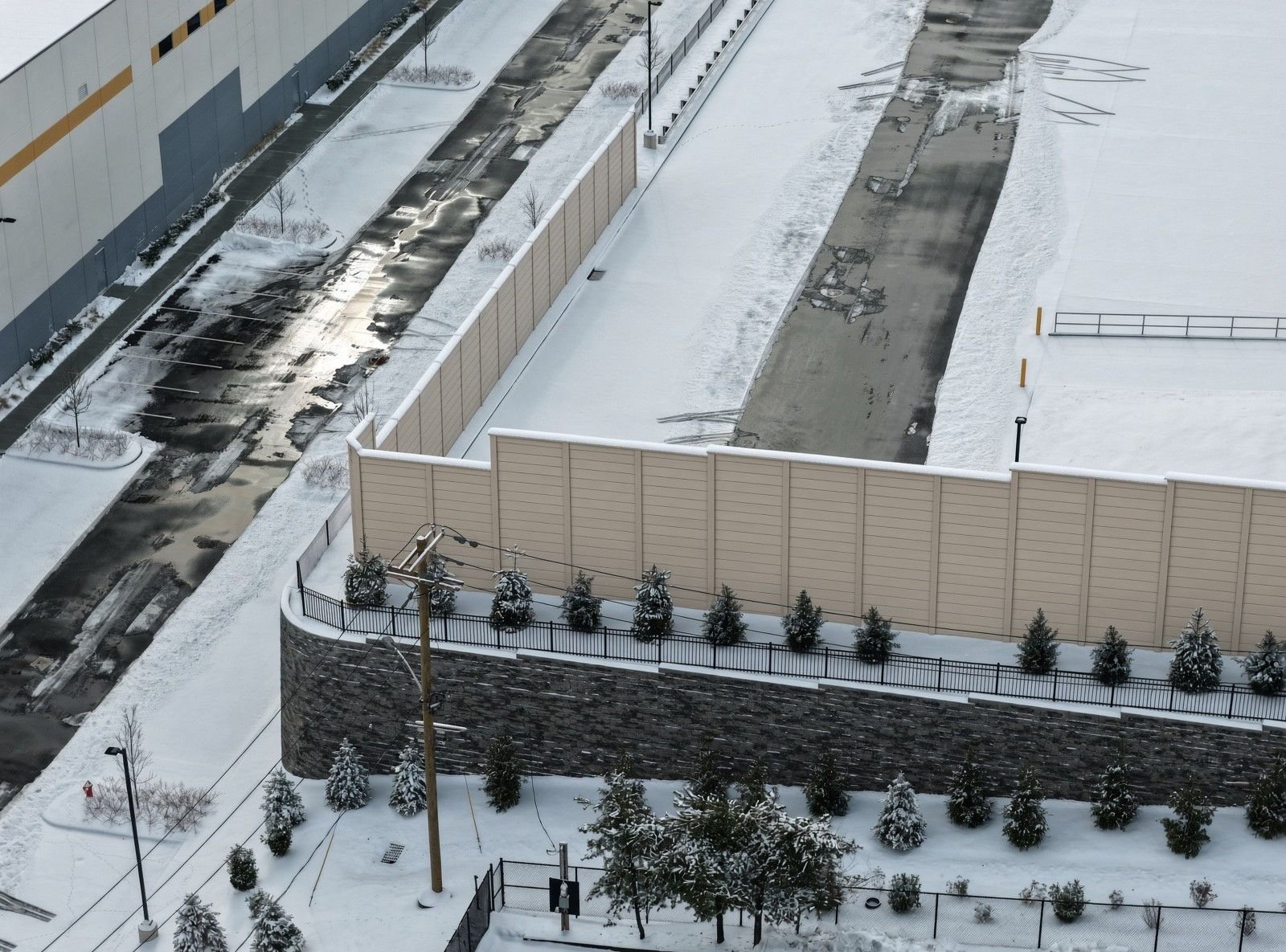

Works in every season
PlywallPVC® is built for sites that cannot take a wood finish through freeze-thaw, road salt and standing moisture. Vinyl panels keep a uniform face when the job is still operating in January.
One scope, one crew
Specify the barrier. We engineer it, fabricate the panels and install — including combined soundwall and retaining-wall work, so a second contractor is not setting sleeves.
Visualizations apply the PlywallPVC® finish to documented project settings.
Specify · engineer · deliver
How to put PlywallPVC® on the job
Specify
Call PlywallPVC® as the basis of design. Write it as equal to or better than other vinyl noise-barrier systems on the market — engineered post-and-panel construction with a factory finish.
Engineer
We size posts, panels and foundations to site wind, soils and height. Shop drawings and calcs are part of the package.
Deliver
Fabricated and installed by our own crews under one contract. Union, non-union or prevailing wage. Direct to owner, developer or GC.
One name, three systems
Compare the PLYWALL® family
We are the only soundwall company that offers a pre-engineered wood, PVC and precast noise barrier system. We engineer, fabricate and install all three with our own crews.
| Plywall® | PlywallPVC® | PlywallPRECAST® | |
|---|---|---|---|
| Material | Pressure-treated, kiln-dried-after-treatment wood (KDAT), CCA / MCA preservative | Color-stable PVC (vinyl) panels | Precast concrete |
| Sound rating | STC 31 or STC 35 — same price. Min. 20 dB transmission loss (ASTM E-90) | STC 32 or STC 38 (ASTM E90/E413) | STC 48 (ASTM E90/E413) |
| Barrier performance | Reflective | Reflective or absorptive | Reflective or absorptive |
| Panel widths | 8, 12, 16 ft | 8, 12, 16 ft | 8, 12, 16 ft |
| Panel heights | Unlimited* | Unlimited* | Unlimited* |
| Finish | Factory clear sealant or solid-color stain — 48-color deck | 6 solid colors + 4 woodgrains, color is in the vinyl | Factory clear sealant or solid color — 48-color deck |
| Maintenance | No routine maintenance required (suggested) | No staining or painting, ever | No routine maintenance required |
| Warranty | 15–30 yr limited, by options selected | 15 years | 20 years |
| Service life | 25+ years | 30+ years | 40+ years |
| Delivery | Engineered, fabricated and installed by our own crews | Engineered, fabricated and installed by our own crews | Engineered, fabricated and installed by our own crews |
*Certain wind-load limitations apply. Barriers are engineered to your specified wind loading (typically 20–60 PSF, per IBC).
